# UNIDENTIFIED
IODE-3298WEI
Chipset Winbond
Data Bus 16-bit ISA
Card Size Half height, half length
Hard Drives Supported Two IDE(AT) devices

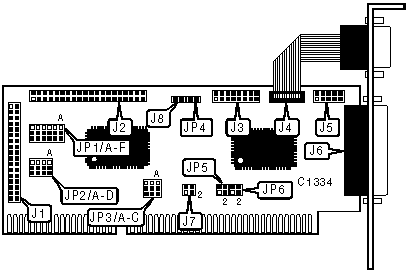

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| 34-pin cable | J1 | 10-pin serial port | J5 |
| connector - floppy | | 2 - internal | |
| drive | | | |
|-----------------------+-------+--------------------+-------|
| 40-pin IDE(AT) | J2 | 25-pin parallel | J6 |
| connector | | port - external | |
|-----------------------+-------+--------------------+-------|
| 16-pin game port | J3 | 2-pin drive active | J8 |
| | | LED | |
|-----------------------+-------+--------------------+-------|
| 9-pin serial port 1 - | J4 | | |
| external | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| IDE(AT) interface enabled | JP2/A | Pins 1 & |
| | | 2 closed |
|----------------------------------------+-------+-----------|
| IDE(AT) interface disabled | JP2/A | Pins 2 & |
| | | 3 closed |
|----------------------------------------+-------+-----------|
| IDE address is 1F0h | JP2/B | Pins 1 & |
| | | 2 closed |
|----------------------------------------+-------+-----------|
| IDE address is 170h | JP2/B | Pins 2 & |
| | | 3 closed |
|----------------------------------------+-------+-----------|
| Floppy drive interface enabled | JP2/C | Pins 1 & |
| | | 2 closed |
|----------------------------------------+-------+-----------|
| Floppy drive interface disabled | JP2/C | Pins 2 & |
| | | 3 closed |
|----------------------------------------+-------+-----------|
| Floppy drive order is normal (A:, B:) | JP2/D | Pins 1 & |
| | | 2 closed |
|----------------------------------------+-------+-----------|
| Floppy drive order is reversed (B:, | JP2/D | Pins 2 & |
| A:) | | 3 closed |
|----------------------------------------+-------+-----------|
| Parallel port interrupt is IRQ7 | JP3/A | Pins 1 & |
| | | 2 closed |
|----------------------------------------+-------+-----------|
| Parallel port interrupt is IRQ5 | JP3/A | Pins 2 & |
| | | 3 closed |
|----------------------------------------+-------+-----------|
| Game port enabled | JP4 | Closed |
|----------------------------------------+-------+-----------|
| Game port disabled | JP4 | Open |
|----------------------------------------+-------+-----------|
| IDE interrupt is IRQ14 | J7 | Pins 3 & |
| | | 4 closed |
|----------------------------------------+-------+-----------|
| IDE interrupt is IRQ15 | J7 | Pins 1 & |
| | | 2 closed |
|------------------------------------------------------------|
| Note:J7 may not be present on all versions of this |
| card. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP1/A | JP1/B |
|------------------+--------------------+--------------------|
| 3F8h (COM1:) | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3E8h (COM3:) | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 2E8h (COM4:) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP1/C | JP1/D |
|------------------+--------------------+--------------------|
| 2F8h (COM2:) | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3E8h (COM3:) | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 2E8h (COM4:) | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP1/E | JP1/F |
|------------------+--------------------+--------------------|
| 378h | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3BCh | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 278h | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT MODE SELECTION |
|------------------------------------------------------------|
| Setting | JP3/B | JP3/C | JP5 | JP6 |
|----------------+----------+----------+----------+----------|
| Unidirectional | Pins 1 & | Pins 1 & | Pins 1 & | Pins 1 & |
| | 2 closed | 2 closed | 2 closed | 2 closed |
|----------------+----------+----------+----------+----------|
| EPP | Pins 2 & | Pins 1 & | Pins 1 & | Pins 1 & |
| | 3 closed | 2 closed | 2 closed | 2 closed |
|----------------+----------+----------+----------+----------|
| ECP | Pins 1 & | Pins 2 & | Pins 1 & | Pins 1 & |
| | 2 closed | 3 closed | 3 closed | 3 closed |
+------------------------------------------------------------+
