# BEHAVIOR TECH COMPUTER CORPORATION
BTC-1505
Card Type Monochrome graphic printer card
Chipset/Controller Unknown
I/O Options Video port, parallel port
Maximum DRAM N/A

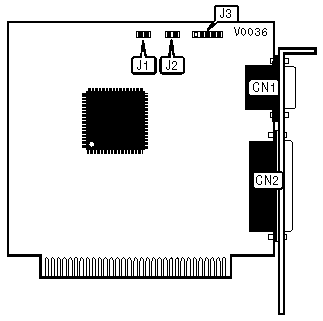

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------------+----------+------------+----------|
| 9-pin digital video | CN1 | Light pen | CN3 |
| port | | connector | |
|-------------------------+----------+------------+----------|
| Parallel port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J1 |
|----------------------------------+-------------------------|
| » | Enabled | Open |
|-----+----------------------------+-------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CHARACTER FONT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|------------------------------------+-----------------------|
| » | Enable built-in character font | Open |
|---+--------------------------------+-----------------------|
| | Enable external character font | Closed |
+------------------------------------------------------------+
