# ACER, INC.
MGA-PC
Category Graphics/printer card
Video Types Supported Monochrome
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8 Bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB (Location unknown)
IMG IMG 1
+------------------------------------------------------------+

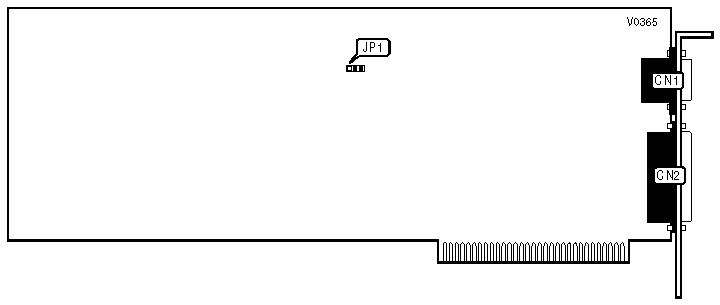

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| 15-pin analog video | CN1 | Parallel port | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MEMORY BUFFER CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP1 |
|-----------------------------+------------------------------|
| Text mode | Pins 2 & 3 closed |
|-----------------------------+------------------------------|
| Graphics enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
