# ADVANCED DIGITAL SYSTEMS
RADIO ROCK-IT RDS
Card Type Sound card
Chipset Intel
Controller
I/O Options Antenna, audio out, data out, line in, stereo
out
Maximum DRAM N/A
IMG IMG 1
+------------------------------------------------------------+

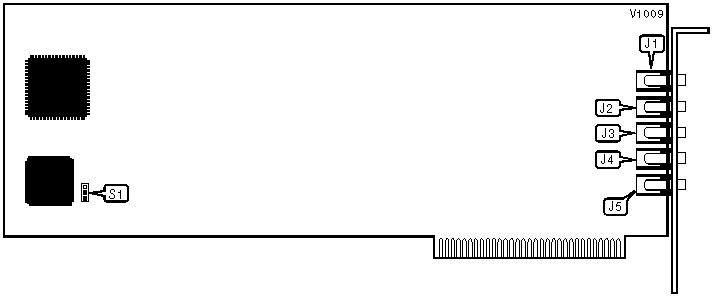

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Antenna | J1 | Line in | J4 |
|--------------------+----------+-----------------+----------|
| Stereo out | J2 | Data out | J5 |
|--------------------+----------+-----------------+----------|
| Audio out | J3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | S1 |
|-----------------------------+------------------------------|
| ยป | 300h - 330h | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | 700h - 730h | Pins 2 & 3 closed |
+------------------------------------------------------------+
