# AZTECH LABS, INC.
SOUND GALAXY BX II
Card Type Sound card
Chipset Aztech AZTSB0792
Controller
I/O Options Audio out, CD audio in, game/MIDI port, line in
, microphone in, volume
Maximum DRAM N/A

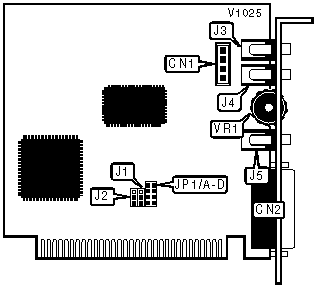

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| CD audio in | CN1 | Microphone in | J4 |
|-------------------+----------+------------------+----------|
| Game/MIDI port | CN2 | Audio out | J5 |
|-------------------+----------+------------------+----------|
| Line in | J3 | Volume | VR1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| » Address | J1 |
|----------------------------+-------------------------------|
| » | 220h | Pins 2 & 3 closed |
|----+-----------------------+-------------------------------|
| » | 240h | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GAME PORT CONFIGURATION |
|------------------------------------------------------------|
| » Setting | J2 |
|----------------------------+-------------------------------|
| » | Enabled | Open |
|---+------------------------+-------------------------------|
| » | Disabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| » IRQ | JP1/A | JP1/B | JP1/C | JP1/D |
|-----------+------------+-----------+-----------+-----------|
| » | 7 | Closed | Open | Open | Open |
|---+-------+------------+-----------+-----------+-----------|
| » | 2 | Open | Open | Open | Closed |
|---+-------+------------+-----------+-----------+-----------|
| » | 3 | Open | Open | Closed | Open |
|---+-------+------------+-----------+-----------+-----------|
| » | 5 | Open | Closed | Open | Open |
+------------------------------------------------------------+
