       # BOCA RESEARCH, INC.

          BOCABOARD BB2106

          Card Type          16-bit ISA
          Chipset Controller N/A
          I/O Options        Serial
          Maximum DRAM       N/A

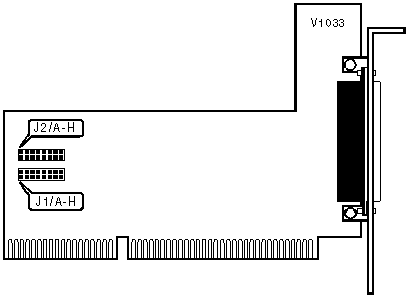

   IMG IMG 1


          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |IRQ | J1/A | J1/B | J1/C | J1/D | J1/E | J1/F | J1/G | J1/H |
          |----+------+------+------+------+------+------+------+------|
          | 3  | Open | Open | Open | Open | Open | Open | Open |Closed|
          |----+------+------+------+------+------+------+------+------|
          | 4  | Open | Open | Open | Open | Open | Open |Closed| Open |
          |----+------+------+------+------+------+------+------+------|
          | 5  | Open | Open | Open | Open | Open |Closed| Open | Open |
          |----+------+------+------+------+------+------+------+------|
          | 7  | Open | Open | Open | Open |Closed| Open | Open | Open |
          |----+------+------+------+------+------+------+------+------|
          | 10 | Open | Open | Open |Closed| Open | Open | Open | Open |
          |----+------+------+------+------+------+------+------+------|
          | 11 | Open | Open |Closed| Open | Open | Open | Open | Open |
          |----+------+------+------+------+------+------+------+------|
          | 12 | Open |Closed| Open | Open | Open | Open | Open | Open |
          |----+------+------+------+------+------+------+------+------|
          | 15 |Closed| Open | Open | Open | Open | Open | Open | Open |
          +------------------------------------------------------------+

          +---------------------------------------------------------------+
          |                  I/O PORT ADDRESS SELECTION                   |
          |---------------------------------------------------------------|
          |Address| J2/A | J2/B | J2/C | J2/D | J2/E | J2/F | J2/G | J2/H |
          |-------+------+------+------+------+------+------+------+------|
          |» |100h| Open | Open |Closed| Open | Open | Open | Open | Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |000h|Closed| Open | Open | Open | Open | Open | Open | Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |080h| Open |Closed| Open | Open | Open | Open | Open | Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |180h| Open | Open | Open |Closed| Open | Open | Open | Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |200h| Open | Open | Open | Open |Closed| Open | Open | Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |280h| Open | Open | Open | Open | Open |Closed| Open | Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |300h| Open | Open | Open | Open | Open | Open |Closed| Open |
          |--+----+------+------+------+------+------+------+------+------|
          |  |380h| Open | Open | Open | Open | Open | Open | Open |Closed|
          +---------------------------------------------------------------+
