SOUND GALAXY NOVA 16 EXTRA
Card Type Sound
Chipset Unidentified
Controller
I/O Options CD-ROM interface (3), CD Audio in, game/MIDI
port, Line in, Line out,Speaker out, Multimedia
PC speaker out, PC speaker in, Microphone jack,
Wave table synthesis interface, Volume control
Maximum DRAM N/A

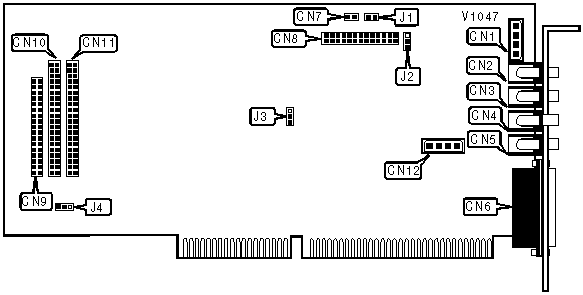

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| CD audio in | CN1 | PC speaker in | CN7 |
|----------------+----------+---------------------+----------|
| Line in | CN2 | Wave table | CN8 |
| | | interface | |
|----------------+----------+---------------------+----------|
| Microphone | CN3 | Sony CD-ROM | CN9 |
|----------------+----------+---------------------+----------|
| Line out | CN4 | Mitsumi/Aztech | CN10 |
| | | CD-ROM | |
|----------------+----------+---------------------+----------|
| Speaker out | CN5 | Panasonic CD-ROM | CN11 |
|----------------+----------+---------------------+----------|
| Game/MIDI port | CN6 | Multimedia PC | CN12 |
| | | speaker out | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PC SPEAKER AMPLIFICATION |
|------------------------------------------------------------|
| Setting | J1 |
|-----------------------------------+------------------------|
| » | Low amplification | Open |
|---+-------------------------------+------------------------|
| | High amplification | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MICROPHONE TYPE |
|------------------------------------------------------------|
| Type | J2 |
|----------------------------+-------------------------------|
| » | Condenser | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Carbon | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
| Address | J4 |
|-----------------------------+------------------------------|
| » | 220h - 22Fh | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | 240h - 24Fh | Pins 2 & 3 Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EEPROM |
|------------------------------------------------------------|
| Setting | J3 |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
