# AZTECH LABS, INC.
SOUND GALAXY ORION 16
Card Type Sound
Chipset Unidentified
Controller
I/O Options CD-ROM interface (3), SCSI/FM radio in, CD Audio
in, game/MIDI port, Line in, Speaker out(2),
Multimedia PC speaker out, PC speaker in,
Microphone jack, Wave table interface, Antenna
Maximum DRAM N/A

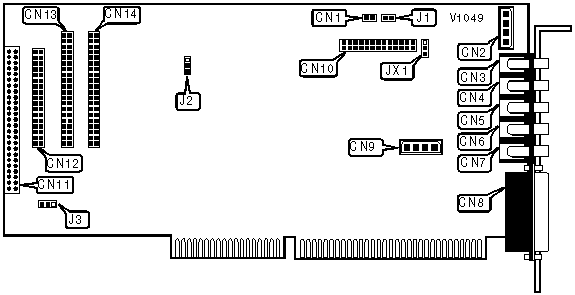

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| PC speaker in | CN1 | Game/MIDI port | CN8 |
|---------------+----------+----------------------+----------|
| CD audio in | CN2 | Multimedia PC | CN9 |
| | | speaker out | |
|---------------+----------+----------------------+----------|
| Antenna | CN3 | Wave table interface | CN10 |
|---------------+----------+----------------------+----------|
| Line in | CN4 | SCSI/FM radio | CN11 |
| | | interface | |
|---------------+----------+----------------------+----------|
| Microphone | CN5 | Sony CD-ROM | CN12 |
|---------------+----------+----------------------+----------|
| Speaker out | CN6 | Mitsumi/Aztech | CN13 |
| | | CD-ROM | |
|---------------+----------+----------------------+----------|
| Speaker out | CN7 | Panasonic CD-ROM | CN14 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PC SPEAKER AMPLIFICATION |
|------------------------------------------------------------|
| Setting | J1 |
|-----------------------------------+------------------------|
| » | Low amplification | Open |
|---+-------------------------------+------------------------|
| | High amplification | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MICROPHONE TYPE |
|------------------------------------------------------------|
| Type | JX1 |
|----------------------------+-------------------------------|
| » | Condenser | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Carbon | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EEPROM |
|------------------------------------------------------------|
| Setting | J2 |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
| Address | J3 |
|-----------------------------+------------------------------|
| » | 220h - 22Fh | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | 240h - 24Fh | Pins 2 & 3 Closed |
+------------------------------------------------------------+
