LASERMATE CD-ROM INTERFACE CARD
Card Type CD-ROM interface
Chipset Controller Unidentified
I/O Options CD-ROM interface
Maximum DRAM N/A

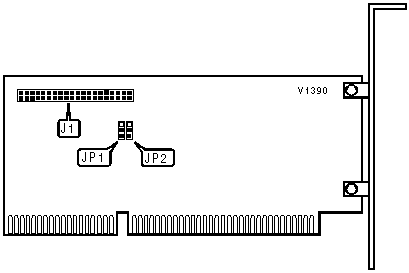

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|--------------------------------+---------------------------|
| CD-ROM interface connector | J1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP1 | JP2 |
|--------------+----------------------+----------------------|
| 310h | Pins 2 & 3 closed | Pins 1 & 2 closed |
|--------------+----------------------+----------------------|
| 320h | Pins 1 & 2 closed | Pins 2 & 3 closed |
|--------------+----------------------+----------------------|
| 330h | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
