# BEST UNION ELECTRONICS CO., LTD.
MISS MELODY MF-688SP PLUG & PLAY
Card Type Sound card
Chip Set Unidentified
Maximum Onboard None
Memory
I/O Options CD-ROM audio (3), CD-ROM interface, game/MIDI
port, line in (2), line out, microphone in, PC
speaker in, speaker out, wavetable
Data Bus 16-bit ISA
Floppy drives None
supported
IMG IMG 1
+------------------------------------------------------------+

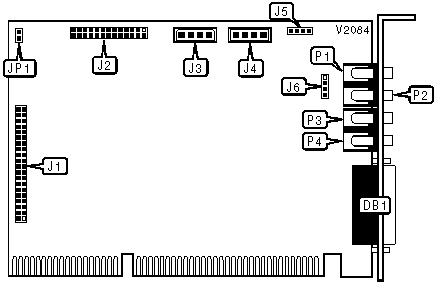

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| Game/MIDI port | DB1 | Line in | J6 |
|-------------------------+-------+------------------+-------|
| IDE CD-ROM interface | J1 | PC speaker in | JP1 |
|-------------------------+-------+------------------+-------|
| Wavetable | J2 | Mic in | P1 |
|-------------------------+-------+------------------+-------|
| Panasonic CD - audio in | J3 | Line in | P2 |
|-------------------------+-------+------------------+-------|
| Mitsumi CD - audio in | J4 | Line out | P3 |
|-------------------------+-------+------------------+-------|
| Sony CD - audio in | J5 | Speaker out | P4 |
+------------------------------------------------------------+
