# ALLOY COMPUTER PRODUCTS, INC.
IMP8
Card Type I/O controller
Chip Set None
Maximum Onboard Memory Unidentified
I/O Options Terminal connector
Data Bus 16-bit ISA
Floppy drives supported None

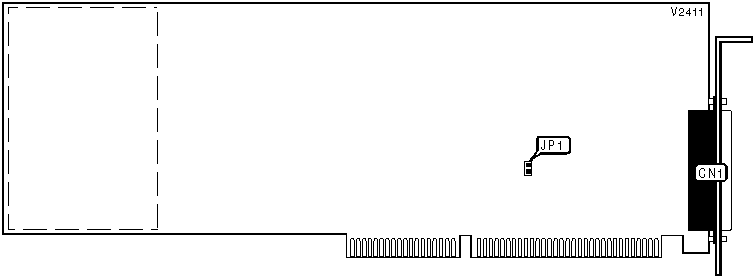

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|------------------------------------+-----------------------|
| 37-pin connector | CN1 |
|------------------------------------------------------------|
| Note: CN1 is used to connect the IMP8 & the Terminal |
| Array Panel together for Alloy’s NX386 operating |
| system. The Terminal Array Panel contains eight |
| terminal connectors (DB-9) & eight parallel/serial |
| connectors (DB-25). |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------------+--------+------------|
| » | First IMP8 board installed | JP1 | Closed |
|-----+--------------------------------+--------+------------|
| | Second IMP8 board installed | JP1 | Open |
|------------------------------------------------------------|
| Note: Only remove the jumper from JP1 on the second board |
| installed in any system. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: The exact type & amount of memory is |
| unidentified. |
+------------------------------------------------------------+
