# ALLOY COMPUTER PRODUCTS, INC.
PC-SLAVE/16N (VER. 1)
Card Type I/O card
Chip Set Unidentified
Maximum Onboard Memory 1MB RAM
I/O Options Console port, terminal port
Data Bus 8-bit ISA
Floppy drives supported None

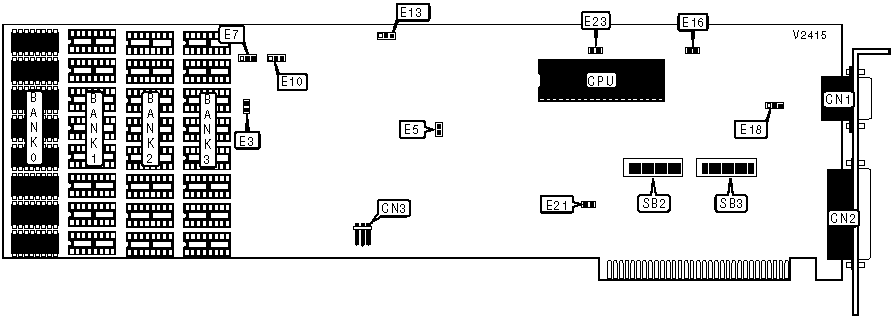

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------+-------+--------------------------+-------|
| 9-pin console | CN1 | Reset/Activity connector | CN3 |
| port | | | |
|-----------------+-------+--------------------------+-------|
| 25-pin terminal | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+-------+-------------------|
| » | Factory configured - do | E3 | Closed |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | E5 | Closed |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | E7 | Pins 1 & 2 closed |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | E10 | Pins 2 & 3 closed |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| | DOS memory is 512KB | E13 | Pins 2 & 3 closed |
|---+----------------------------+-------+-------------------|
| | DOS memory is 640KB | E13 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | E16 | Open |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | E18 | Closed |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| | Slave dual address is | E21 | Closed |
| | A000h & D000h | | |
|---+----------------------------+-------+-------------------|
| | Single address is D000h | E21 | Open |
|---+----------------------------+-------+-------------------|
| » | Slave will reboot system | E23 | Closed |
|---+----------------------------+-------+-------------------|
| | Slave will not reboot | E23 | Open |
| | system | | |
|---+----------------------------+-------+-------------------|
| | Disabled interrupt | SB2/1 | Off |
|---+----------------------------+-------+-------------------|
| | Enabled interrupt | SB2/1 | On |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | SB2/2 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | SB2/3 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | SB2/4 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | SB2/5 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | SB2/6 | Unidentified |
| | not alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | SB3/6 | SB3/7 | SB3/8 | SB2/7 | SB2/8 |
|-----------+---------+---------+---------+---------+--------|
| 200h | On | On | On | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 220h | Off | On | On | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 240h | On | Off | On | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 260h | Off | Off | On | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 280h | On | On | Off | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 2A0h | Off | On | Off | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 2C0h | On | Off | Off | Off | On |
|-----------+---------+---------+---------+---------+--------|
| 300h | On | On | On | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 320h | Off | On | On | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 340h | On | Off | On | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 360h | Off | Off | On | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 380h | On | On | Off | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 3A0h | Off | On | Off | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 3C0h | On | Off | Off | Off | Off |
|-----------+---------+---------+---------+---------+--------|
| 3E0h | Off | Off | Off | Off | Off |
|------------------------------------------------------------|
| Note:A total of 255 base address settings are |
| available. The switches are a binary representation |
| of the decimal memory addresses. SB2/7 is the Most |
| Significant Bit and switch SB3/6 is the Least |
| Significant Bit. The switches have the following |
| decimal values:SB2/7=512, SB2/8=256, SB1/8=128, |
| SB1/7=64, and SB1/6=32. Turn off the switches and add |
| the values of the switches and convert to hexadecimal |
| to obtain the correct memory address. (Off=1, On=0) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| NUMBER OF USER CONFIGURATION |
|------------------------------------------------------------|
| User | SB3/1 | SB3/2 | SB3/3 | SB3/4 | SB3/5 |
|---------+----------+---------+---------+---------+---------|
| 1 | Off | On | On | On | On |
|---------+----------+---------+---------+---------+---------|
| 2 | On | Off | On | On | On |
|---------+----------+---------+---------+---------+---------|
| 3 | Off | Off | On | On | On |
|---------+----------+---------+---------+---------+---------|
| 4 | On | On | Off | On | On |
|---------+----------+---------+---------+---------+---------|
| 5 | Off | On | Off | On | On |
|---------+----------+---------+---------+---------+---------|
| 27 | Off | Off | On | Off | Off |
|---------+----------+---------+---------+---------+---------|
| 28 | On | On | Off | Off | Off |
|---------+----------+---------+---------+---------+---------|
| 29 | Off | On | Off | Off | Off |
|---------+----------+---------+---------+---------+---------|
| 30 | On | Off | Off | On | Off |
|---------+----------+---------+---------+---------+---------|
| 31 | Off | Off | Off | Off | Off |
|------------------------------------------------------------|
| Note:A total of 31 user numbers are available. The |
| switches are a binary representation of the decimal user |
| number. SB3/5 is the Most Significant Bit and switch SB3/1 |
| is the Least Significant Bit. The switches have the |
| following values: SB3/1=1, SB3/2=2, SB3/3=4, SB3/4=8, and |
| SB3/5=16. Turn off the switches and add the values of the |
| switches to obtain the correct user number. (Off=1, On=0) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 256KB | (8) 256K x | None | None | None |
| | 1 | | | |
|-------+-------------+------------+------------+------------|
| 512KB | (8) 256K x | (8) 256K x | None | None |
| | 1 | 1 | | |
|-------+-------------+------------+------------+------------|
| 768KB | (8) 256K x | (8) 256K x | (8) 256K x | None |
| | 1 | 1 | 1 | |
|-------+-------------+------------+------------+------------|
| 1MB | (8) 256K x | (8) 256K x | (8) 256K x | (8) 256K x |
| | 1 | 1 | 1 | 1 |
+------------------------------------------------------------+
ALLOY COMPUTER PRODUCTS, INC.
MATH/16 COPROCESSOR
IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| CPU Socket | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| To install the MATH/16 Coprocessor daughter card, remove |
| the CPU from its socket on the PC-SLAVE/16N, and install |
| it in the socket on the daughter card. Then insert the |
| daughter card into the socket from which you removed the |
| CPU on the PC-SLAVE/16N card, so that the pin 1’s on the |
| daughter card are pointing in the same direction as the |
| pin 1’s of all the chips on the PC-SLAVE/16N. |
+------------------------------------------------------------+
