# ACQUIRE COMPUTER SYSTEMS, INC.
ACS-275-11
Card Type Sound card
Chip Set AMD
I/O Options CD-ROM interfaces, wave-table interface, game/MIDI
port, line in, microphone in, line/speaker out,
CD-ROM audio in (2)
Data Bus 16-bit ISA

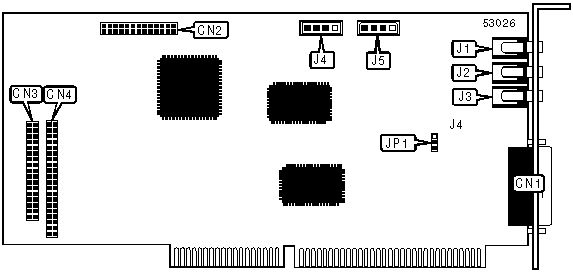

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Game/MIDI port | CN1 | Line in phonejack | J2 |
|---------------------+-------+----------------------+-------|
| Feature connector | CN2 | Line/Speaker out | J3 |
| | | phonejack | |
|---------------------+-------+----------------------+-------|
| Wavetable connector | CN3 | Audio in - CD-ROM | J4 |
| | | (Mitsumi) | |
|---------------------+-------+----------------------+-------|
| ATAPI CD-ROM | CN4 | Audio in - CD-ROM | J5 |
| connector | | (Panasonic) | |
|---------------------+-------+----------------------+-------|
| Microphone jack | J1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------+-------+--------------------|
| ยป | Speak out | JP1 | Pins 1&2 closed |
|---+---------------------------+-------+--------------------|
| | Line out | JP1 | Pins 2&3 closed |
+------------------------------------------------------------+
