# AMS, INC.
MULTI I/O-21
Card Type Multi I/O
Chip Set Unidentified
Maximum Onboard Memory Unidentified
I/O Options Serial ports (2), Parallel port
Hard Drives supported None
Floppy drives supported None
Data Bus MCA
Card Size Half-length, full-height

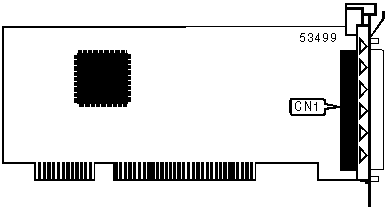

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| DB-37 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note: A standard DB-25 female connector (parallel port) , |
| and 2 standard DB-25 male connectors (serial ports) are |
| provided on an included adapter cable. |
+------------------------------------------------------------+
