# AVM TECHNOLOGY, INC.
APEX
Card Type Sound card
Chip Set Unidentified
Maximum Onboard 64MB (EDO supported)
Memory
I/O Options Line in, microphone in, line out, game/MIDI
port, CD/auxiliary input, direct MIDI output
Data Bus 16-bit ISA

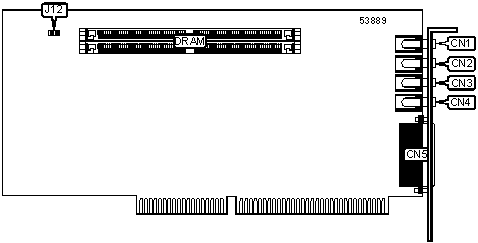

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Direct MIDI output | CN1 | Microphone in/line in | CN4 |
|--------------------+-------+-----------------------+-------|
| Line out | CN2 | Game/MIDI port | CN5 |
|--------------------+-------+-----------------------+-------|
| CD/auxiliary input | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-------------+------------------------+---------------------|
| 1MB | (1) 256K x 36 | None |
|-------------+------------------------+---------------------|
| 4MB | (1) 1M x 36 | None |
|-------------+------------------------+---------------------|
| 5MB | (1) 1M x 36 | (1) 256K x 36 |
|-------------+------------------------+---------------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 |
|-------------+------------------------+---------------------|
| 16MB | (1) 4M x 36 | None |
|-------------+------------------------+---------------------|
| 32MB | (1) 8M x 36 | None |
|-------------+------------------------+---------------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 |
|-------------+------------------------+---------------------|
| 36MB | (1) 1M x 36 | (1) 8M x 36 |
|-------------+------------------------+---------------------|
| 48MB | (1) 4M x 36 | (1) 8M x 36 |
|-------------+------------------------+---------------------|
| 64MB | (1) 8M x 36 | (1) 8M x 36 |
|------------------------------------------------------------|
| Note: The location of banks 0 & 1 is unidentified. |
| Card accepts EDO memory. Banks are interchangeable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Setting | J12 |
|------------------------------------------+-----------------|
| ยป | SIMMs installed | Closed |
|----------+-------------------------------+-----------------|
| | SIMMs not installed | Open |
|------------------------------------------------------------|
| Note: If jumper is open, the 2MB ROM set is disabled. |
+------------------------------------------------------------+
