# AIMS LAB, INC.
RADIOTRACK
Card Type Sound card
Chip Set Unidentified
Maximum Onboard Memory Unidentified
I/O Options Speaker out, antenna in
Data Bus 8-bit ISA

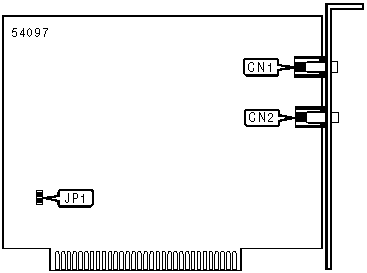

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Antenna in | CN1 | Speaker out | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP1 |
|---------------------------------------+--------------------|
| ยป | 30Ch-30Fh | Open |
|-----+---------------------------------+--------------------|
| | 20Ch-20Fh | Closed |
+------------------------------------------------------------+
