# ACER, INC.
S711
Card Type Sound card
Chip Set Unidentified
Maximum Onboard None
Memory
I/O Options Line ins (2), microphone ins (2), line out,
game/MIDI port, audio in - CD-ROMs (3),
wavetable connector, speaker/line out
Data Bus 16-bit ISA
IMG IMG 1
+------------------------------------------------------------+

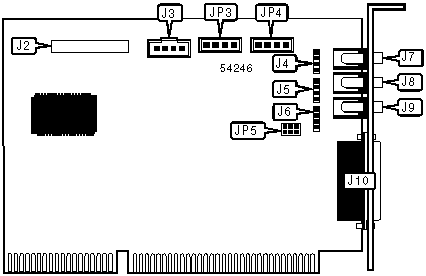

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Wavetable connector | J2 | Microphone in | J8 |
| | | (external) | |
|---------------------+-------+----------------------+-------|
| Audio in - CD-ROM | J3 | Speaker/line out | J9 |
| (Sony) | | | |
|---------------------+-------+----------------------+-------|
| Line in (internal) | J4 | Game/MIDI port | J10 |
|---------------------+-------+----------------------+-------|
| Microphone in | J5 | Audio in - CD-ROM | JP3 |
| (internal) | | (Creative) | |
|---------------------+-------+----------------------+-------|
| Line out (internal) | J6 | Audio in - CD-ROM | JP4 |
| | | (Mitsumi) | |
|---------------------+-------+----------------------+-------|
| Line in (external) | J7 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------+-------+--------------------------|
| Speaker out enabled | JP5 | Pins 3 & 5, 4 & 6 closed |
|-------------------------+-------+--------------------------|
| Line out enabled | JP5 | Pins 1 & 3, 2 & 4 closed |
+------------------------------------------------------------+
