# ADVANCED DIGITAL SYSTEMS
ES-1868F/ESS PC STEREO SOUND CARD
Card Type Sound card
Chip Set Unidentified
I/O Options Speaker/ line out (2), line in (2), CD-ROM
interface, microphone in (2), game/MIDI port,
wavetable connector, audio in-CD-ROM in (2), voice
modem connector
Data Bus 16-bit ISA

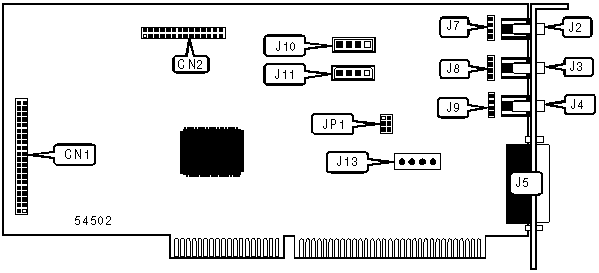

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| CD-ROM interface | CN1 | Speaker/line out | J7 |
| | | internal | |
|----------------------+-------+---------------------+-------|
| Wavetable connector | CN2 | Line in internal | J8 |
|----------------------+-------+---------------------+-------|
| Speaker/line out | J2 | Microphone in | J9 |
| external | | internal | |
|----------------------+-------+---------------------+-------|
| Line in external | J3 | Audio in - CD-ROM | J10 |
| | | (Mitsumi) | |
|----------------------+-------+---------------------+-------|
| Microphone in | J4 | Audio in - CD-ROM | J11 |
| external | | (Panasonic) | |
|----------------------+-------+---------------------+-------|
| Game/MIDI port | J5 | Voice modem | J13 |
| | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------+---------+--------------------------|
| J2 speaker out | JP1 | Pins 1 & 2, 4 & 5 closed |
|-----------------------+---------+--------------------------|
| J2 line out | JP1 | Pins 2 & 3, 5 & 6 closed |
+------------------------------------------------------------+
