# BRAIN BOXES
RELAY 16
Card Type Digital I/O card
I/O Options 37-pin port
Data Bus 8-bit ISA

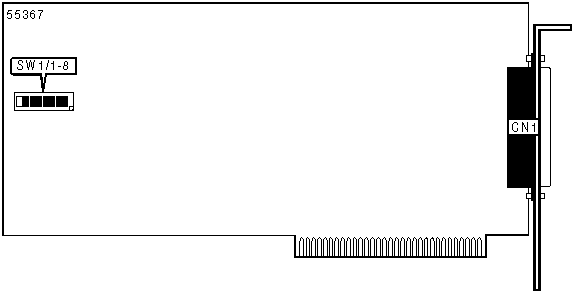

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 37-pin port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
|Setting |SW1/1 |SW1/2 |SW1/3 |SW1/4 |SW1/5|SW1/6|SW1/7|SW1/8|
|--------+------+------+------+------+-----+-----+-----+-----|
| |276h | Off | Off | On | Off | Off | Off | On | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |278h | On | On | Off | Off | Off | Off | On | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |27Ah | Off | On | Off | Off | Off | Off | On | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |27Ch | On | Off | Off | Off | Off | Off | On | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |27Eh | Off | Off | Off | Off | Off | Off | On | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
|ยป |280h | On | On | On | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |282h | Off | On | On | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |284h | On | Off | On | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |286h | Off | Off | On | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |288h | On | On | Off | On | On | On | Off | On |
|--+-----+------+------+------+------+-----+-----+-----+-----|
| |28Ah | Off | On | Off | On | On | On | Off | On |
+------------------------------------------------------------+
