# BROOKTROUT TECHNOLOGY INCORPORATED
TR114+I4B
Card Type Digital I/O card
NIC Type ISDN
Topology Star
Wiring Type Unshielded twisted pair
Data Bus 16-bit ISA

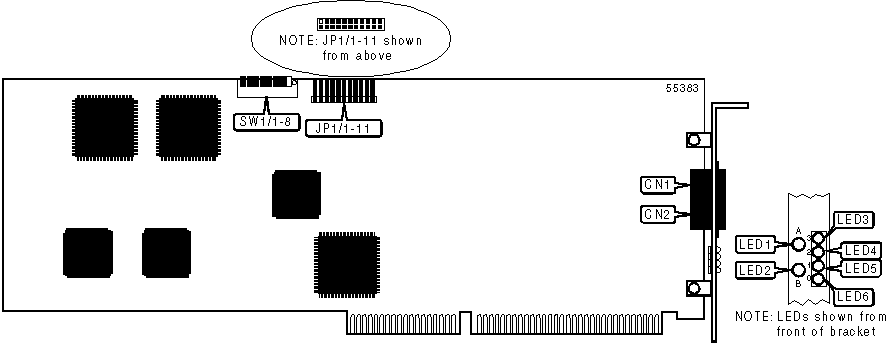

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| RJ-45 UTP connector | CN1 | RJ-45 UTP connector | CN2 |
| A | | B | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| Only one, or the first TR114 in a | SW1/1 | On |
| system | | |
|-----------------------------------------+-------+----------|
| All other TR114 cards in a system | SW1/1 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | SW1/2 | SW1/3 |SW1/4 |SW1/5 |SW1/6 |SW1/7 |SW1/8 |
|---------+-------+-------+------+------+------+------+------|
| 100 | On | On | On | On | On | Off | On |
|---------+-------+-------+------+------+------+------+------|
| 140 | On | On | On | Off | On | Off | On |
|---------+-------+-------+------+------+------+------+------|
| 180 | On | On | On | On | Off | Off | On |
|---------+-------+-------+------+------+------+------+------|
| 200 | On | On | On | On | On | On | Off |
|---------+-------+-------+------+------+------+------+------|
| 220 | On | On | Off | On | On | On | Off |
|---------+-------+-------+------+------+------+------+------|
| 240 | On | On | On | Off | On | On | Off |
|---------+-------+-------+------+------+------+------+------|
| 260 | On | On | Off | Off | On | On | Off |
|---------+-------+-------+------+------+------+------+------|
| 280 | On | On | On | On | Off | On | Off |
|---------+-------+-------+------+------+------+------+------|
| 2A0 | On | On | Off | On | Off | On | Off |
|---------+-------+-------+------+------+------+------+------|
| 2C0 | On | On | On | Off | Off | On | Off |
|------------------------------------------------------------|
| Note: |
| |
|A total of 255 base address settings are available. The |
|switches are a binary representation of the decimal memory |
|addresses. SW1/8 is the Most Significant Bit and switch |
|SW1/1 is the Least Significant Bit. The switches have the |
|following decimal values: SW1/8=32768, SW1/7=16384, |
|SW1/6=8192, SW1/5=4096, SW1/4=2048, SW1/3=1024, SW1/2=512, |
|SW1/1=256. Turn off the switches and add the values of the |
|switches to obtain the correct memory address. (Off=1, On=0)|
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP1 |
|----------------------------+-------------------------------|
| 3 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 4 | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 5 | Pins 5 & 6 closed |
|----------------------------+-------------------------------|
| 6 | Pins 7 & 8 closed |
|----------------------------+-------------------------------|
| 7 | Pins 9 & 10 closed |
|----------------------------+-------------------------------|
| 9 | Pins 11 & 12 closed |
|----------------------------+-------------------------------|
| 10 | Pins 13 & 14 closed |
|----------------------------+-------------------------------|
| 11 | Pins 15 & 16 closed |
|----------------------------+-------------------------------|
| 12 | Pins 17 & 18 closed |
|----------------------------+-------------------------------|
| 14 | Pins 19 & 20 closed |
|----------------------------+-------------------------------|
| 15 | Pins 21 & 22 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | Blinking | Normal operation on A |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | Loss of ISDN telephone service |
| | | | on A |
|------+-------+----------+----------------------------------|
| LED2 | Green | Blinking | Normal operation on B |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | Loss of ISDN telephone service |
| | | | on B |
|------+-------+----------+----------------------------------|
| LED3 | Red | Blinking | Data is being transmitted on |
| | | | ISDN channel 3 |
|------+-------+----------+----------------------------------|
| LED3 | Red | Blinking | ISDN channel 3 is off hook |
| | | (fast) | |
|------+-------+----------+----------------------------------|
| LED4 | Red | Blinking | Data is being transmitted on |
| | | | ISDN channel 2 |
|------+-------+----------+----------------------------------|
| LED4 | Red | Blinking | ISDN channel 3 is off hook |
| | | (fast) | |
|------+-------+----------+----------------------------------|
| LED5 | Red | Blinking | Data is being transmitted on |
| | | | ISDN channel 1 |
|------+-------+----------+----------------------------------|
| LED5 | Red | Blinking | ISDN channel 1 is off hook |
| | | (fast) | |
|------+-------+----------+----------------------------------|
| LED6 | Red | Blinking | Data is being transmitted on |
| | | | ISDN channel 0 |
|------+-------+----------+----------------------------------|
| LED6 | Red | Blinking | ISDN channel 0 is off hook |
| | | (fast) | |
+------------------------------------------------------------+
