# CENTRAL POINT SOFTWARE, INC.
COPY II PC OPTION BOARD
Card Type Floppy enhancer
Chipset Central Point Software TransCopy
I/O Options Floppy drive daisy-chain ports
Data Bus 8-bit ISA
Floppy Drives Supported Two 360KB drives

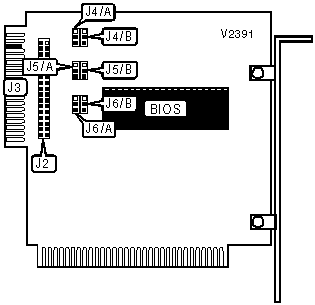

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| 34-pin floppy drive | J2 | Card-edge floppy | J3 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL |
|------------------------------------------------------------|
| Setting | J6/A | J6/B |
|------------------+--------------------+--------------------|
| | DMA1 | Pins 2 & 3 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| ยป | DMA2 | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOPPY CONNECTOR CONFIGURATION |
|------------------------------------------------------------|
| J2 | J3 | J4/A | J4/B | J5/A | J5/B |
|------------+------------+--------+--------+--------+-------|
| From | To drive | Pins 1 | Pins 1 | Pins 1 | Pins |
| controller | | & 2 | & 2 | & 2 | 1 & 2 |
|------------+------------+--------+--------+--------+-------|
| To drive | From | Pins 2 | Pins 2 | Pins 2 | Pins |
| | controller | & 3 | & 3 | & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note:Pins designated are in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| On different versions of this card, jumpers may be in |
| different locations than pictured above. |
+------------------------------------------------------------+
