# CARRY COMPUTER ENGINEERING CO., LTD.
PCD-XX-220
Card Type PCMCIA slot controller
Chip Set Unidentified
Maximum Onboard Memory N/A
I/O Options Proprietary PCMCIA interface
Data Bus 16-bit ISA
Floppy drives supported None

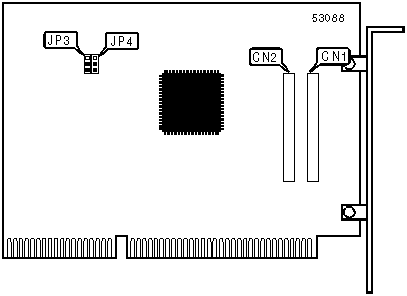

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label | |
|---------------------+-------+-------------------+-------| |
| Proprietary | CN1 | Proprietary | CN2 | |
| interface connector | | interface | | |
| to PCMCIA drive | | connector to | | |
| unit | | PCMCIA drive unit | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MULTI-CARD CONFIGURATION |
|------------------------------------------------------------|
| Setting | Slot # | JP3 | JP4 |
|-------------------------+--------+------------+------------|
| í Card is first in | 1,2 | Pins 2 & 3 | Pins 2 & 3 |
| system | | closed | closed |
|-------------------------+--------+------------+------------|
| Card is second in | 3,4 | Pins 2 & 3 | Pins 1 & 2 |
| system | | closed | closed |
|-------------------------+--------+------------+------------|
| Card is third in system | 5,6 | Pins 1 & 2 | Pins 2 & 3 |
| | | closed | closed |
|-------------------------+--------+------------+------------|
| Card is fourth in | 7,8 | Pins 1 & 2 | Pins 1 & 2 |
| system | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note : The PCD-XX-220 slot controller is a controller |
| card for a PCMCIA drive which has two slots and |
| mounts in a standard floppy bay. |
+------------------------------------------------------------+
