# CREATIVE LABS, INC.
SOUNDBLASTER PRO MCV (CT5330)
Card Type Sound card
Chip Set Unidentified
Maximum Onboard None
Memory
I/O Options Line in connector, microphone in connector,
speaker out connector, game/MIDI port, CD-ROM
audio in connector, PC internal speaker
Data Bus MCA

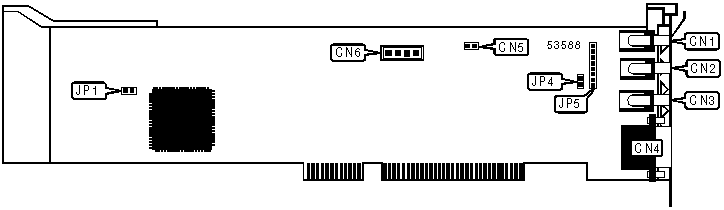

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Line in connector | CN1 | Game/MIDI port | CN4 |
|----------------------+-------+---------------------+-------|
| Microphone connector | CN2 | PC internal speaker | CN5 |
|----------------------+-------+---------------------+-------|
| Speaker out | CN3 | CD-ROM audio in | CN6 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| | Joystick enabled | JP1 | Closed |
|---+---------------------------------+-------+--------------|
| | Joystick disabled | JP1 | Open |
|---+---------------------------------+-------+--------------|
| » | Factory configured – do not | JP4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured – do not | JP5 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
