# DIAMOND FLOWER, INC.
SC201 (REV.B+)
Card Type Sound card
Chip Set ESS
I/O Options Game/MIDI port, wavetable connector, speaker/line
out, line in (2), microphone in, audio in - CD-ROM
Data Bus 16-bit ISA
Card Size Half-length

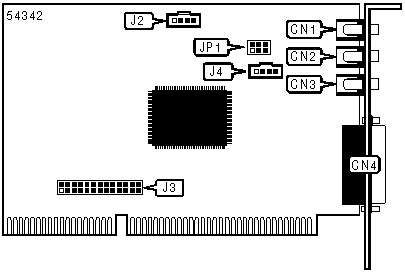

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Speaker/Line out | CN1 | CD Audio-in | J2 |
|--------------------+-------+-----------------------+-------|
| Line in | CN2 | Wave Table Connector | J3 |
|--------------------+-------+-----------------------+-------|
| Microphone in | CN3 | Internal Line-in | J4 |
|--------------------+-------+-----------------------+-------|
| Game/MIDI port | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------+-------+----------------------|
| CN1 is Speaker out | JP1 | Pins 1-3, 2-4 closed |
|-----------------------------+-------+----------------------|
| CN1 is Line out | JP1 | Pins 3-5, 4-6 closed |
+------------------------------------------------------------+
