# ESCOM AG
MULTIMEDIA SOUNDKARTE (ESPOWER 2.7)
Card Type Sound card
Chipset Aztech AZTSB0792
Controller
I/O Options Audio out, CD-ROM audio, game/MIDI port, line
in, microphone in, volume
Maximum DRAM N/A

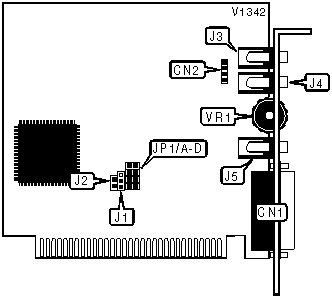

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Game/MIDI port | CN1 | Mic in | J4 |
|--------------------+----------+-----------------+----------|
| CD audio in | CN2 | Audio out | J5 |
|--------------------+----------+-----------------+----------|
| Line in | J3 | Volume | VR1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | J1 |
|----------------------------+-------------------------------|
| » | 220h | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | 240h | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GAME PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|-------------------------------+----------------------------|
| Enabled | Open |
|-------------------------------+----------------------------|
| Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP1/A | JP1/B | JP1/C | JP1/D |
|-----------+------------+-----------+-----------+-----------|
| » | 7 | Open | Open | Open | Closed |
|---+-------+------------+-----------+-----------+-----------|
| | 2 | Closed | Open | Open | Open |
|---+-------+------------+-----------+-----------+-----------|
| | 3 | Open | Closed | Open | Open |
|---+-------+------------+-----------+-----------+-----------|
| | 5 | Open | Open | Closed | open |
+------------------------------------------------------------+
