# EQUINOX SYSTEMS, INC.
MEGAPORT 12CS, MEGAPORT 12FM, MEGAPORT 12LD, MEGAPORT
12LD+12CS, MEGAPORT 24CS, MEGAPORT 24LD
Card Type Serial
Chip Set Unidentified
I/O Options Serial ports (12/24), daisy-chain connectors
Data Bus 16-bit ISA

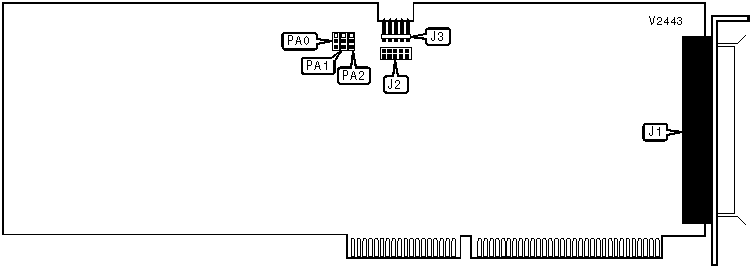

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| Serial ports via | J1 | Daisy-chain out | J3 |
| 100-pin connector | | | |
|-------------------------+-------+------------------+-------|
| Daisy-chain in | J2 | | |
|------------------------------------------------------------|
| Note:Standard DB-25 or RJ-45 serial ports are |
| provided on an included adapter cable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|---------------------------------------+-------+------------|
| » | Card is installed in ISA slot | PA0 | Open |
|---+-----------------------------------+-------+------------|
| | Card is installed in EISA slot | PA0 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | PA1 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | PA2 | Open |
+------------------------------------------------------------+
