# EQUINOX SYSTEMS, INC.
MEGAPORT XP
Card Type Serial
Chip Set Unidentified
I/O Options Serial ports (24), daisy-chain connectors
Data Bus 16-bit ISA

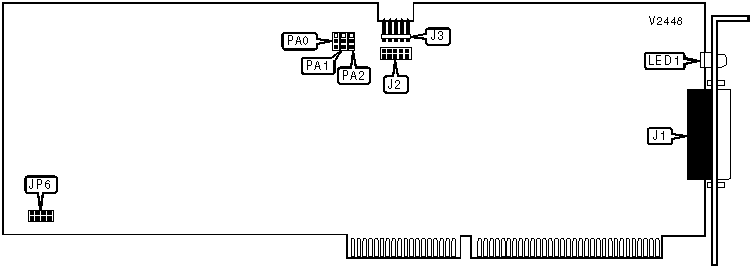

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+---------+---------------------+--------|
| Serial ports | J1 | Daisy-chain out | J3 |
|-------------------+---------+---------------------+--------|
| Daisy-chain in | J2 | | |
|------------------------------------------------------------|
| Note:Standard DB-25 or RJ-45 serial ports are |
| provided on up to three eight-port external modules. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Card is installed in ISA slot | PA0 | Open |
|---+---------------------------------+-------+--------------|
| | Card is installed in EISA slot | PA0 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | PA1 | Open |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | PA2 | Open |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | On | Power is being supplied to |
| | | | the port |
|------+--------------+--------+-----------------------------|
| LED1 | Unidentified | Off | Power is not being supplied |
| | | | to the port |
+------------------------------------------------------------+
