# ENSONIQ CORPORATION
ENSONIQ SOUNDSCAPE-OPUS (VER.1)
Card Type Sound card
Chip Set OPUS
Maximum Onboard Unidentified
Memory
I/O Options Audio line in, Audio line out, CD-ROM audio
connectors (2), Microphone, MIDI/game port
Data Bus 16-bit ISA

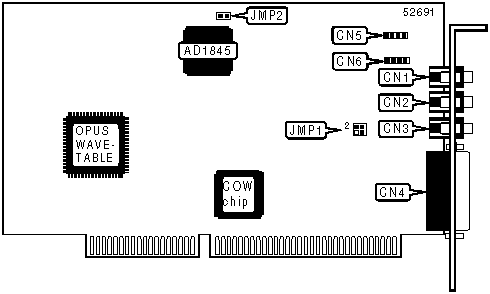

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Audio line in | CN1 | MIDI/game port | CN4 |
|-------------------+-------+------------------------+-------|
| Audio line out | CN2 | CD-ROM audio connector | CN5 |
|-------------------+-------+------------------------+-------|
| Microphone | CN3 | CD-ROM audio connector | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------+-------------+--------------|
| | Phantom power 2.5V | JMP1/Pins 1 | Closed |
| | supplied to microphone | & 2 | |
| | jack | | |
|---+---------------------------+-------------+--------------|
| | Phantom power 2.5V not | JMP1/Pins 1 | Open |
| | supplied to microphone | & 2 | |
| | jack | | |
|---+---------------------------+-------------+--------------|
| | Mono signal routing | JMP1/Pins 3 | Closed |
| | (microphone) routed to | & 4 | |
| | both channels | | |
|---+---------------------------+-------------+--------------|
| | Mono signal routing | JMP1/Pins 3 | Open |
| | (microphone) not routed | & 4 | |
| | to both channels | | |
|---+---------------------------+-------------+--------------|
| ยป | Factory configured - do | JMP2 | Unidentified |
| | not alter | | |
+------------------------------------------------------------+
