# ENSONIQ CORPORATION
ENSONIQ SOUNDSCAPE-OPUS (VER.2)
Card Type Sound card
Chip Set OPUS
Maximum Onboard Unidentified
Memory
I/O Options Audio line in, Audio line out, CD-ROM audio
connectors (2), Microphone, MIDI/game port
Data Bus 16-bit ISA

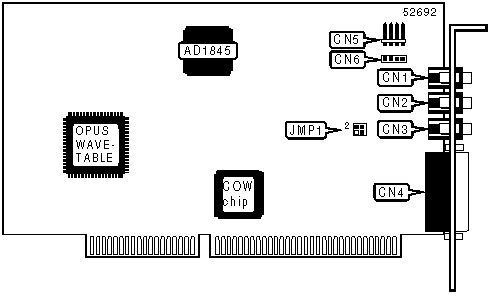

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Audio line in | CN1 | MIDI/game port | CN4 |
|-------------------+-------+------------------------+-------|
| Audio line out | CN2 | CD-ROM audio connector | CN5 |
|-------------------+-------+------------------------+-------|
| Microphone | CN3 | CD-ROM audio connector | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+-------------+----------|
| Phantom power 2.5V supplied to | JMP1/Pins 1 | Closed |
| microphone jack | & 2 | |
|-----------------------------------+-------------+----------|
| Phantom power 2.5V not supplied | JMP1/Pins 1 | Open |
| to microphone jack | & 2 | |
|-----------------------------------+-------------+----------|
| Mono signal routing (microphone) | JMP1/Pins 3 | Closed |
| routed to both channels | & 4 | |
|-----------------------------------+-------------+----------|
| Mono signal routing (microphone) | JMP1/Pins 3 | Open |
| not routed to both channels | & 4 | |
+------------------------------------------------------------+
