# FREETEK GOLDEN MULTIMEDIA
AP9438
Card Type Video card
Video Chip Set Avance Logic
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 2MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA
IMG IMG 1
+------------------------------------------------------------+

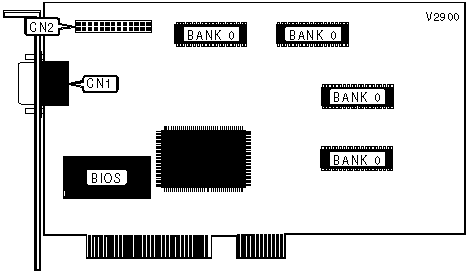

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|-------------------------+----------------------------------|
| 1MB | (2) 256K x 16 |
|-------------------------+----------------------------------|
| 2MB | (4) 256K x 16 |
|------------------------------------------------------------|
| Note: The specific banks to be filled are unidentified in |
| the 1MB configuration. |
+------------------------------------------------------------+
