# FRONT RANGE COMPUTER CORPORATION
SEVEN FALLS
Card Type Sound card
Chip Set Symphony
Maximum Onboard None
Memory
I/O Options CD-ROM audio (3), CD-ROM interface (3),
game/MIDI port, IDE interface, line in,
line/speaker out, microphone, wavetable,
headphone
Data Bus 16-bit ISA
Floppy drives None
supported

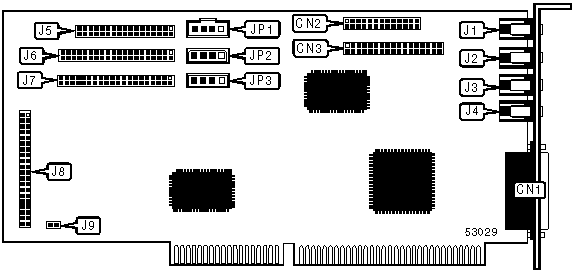

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Game/MIDI port | CN1 | Sony CD-ROM interface | J5 |
|-------------------+-------+------------------------+-------|
| Feature connector | CN2 | Panasonic CD-ROM | J6 |
| | | interface | |
|-------------------+-------+------------------------+-------|
| Wavetable | CN3 | Mitsumi CD-ROM | J7 |
| | | interface | |
|-------------------+-------+------------------------+-------|
| Line in | J1 | IDE interface | J8 |
|-------------------+-------+------------------------+-------|
| Line/Speak out | J2 | Audio in - CD-ROM | JP1 |
| | | (Sony) | |
|-------------------+-------+------------------------+-------|
| Microphone jack | J3 | Audio in - CD-ROM | JP2 |
| | | (Panasonic) | |
|-------------------+-------+------------------------+-------|
| Headphone jack | J4 | Audio in - CD-ROM | JP3 |
| | | (Mitsumi) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | IDE interface enabled | J9 | Closed |
|---+------------------------------------+-------+-----------|
| | IDE interface disabled | J9 | Open |
+------------------------------------------------------------+
