# FRANKLIN TELECOMMUNICATIONS CORPORATION
ICP188X
Card Type X.25 serial
Processor 80188
Processor Speed Unidentified
Chipset Unidentified
I/O Options Serial ports (4)
Data Bus 8-bit ISA
Card Size Full height, three-quarters length

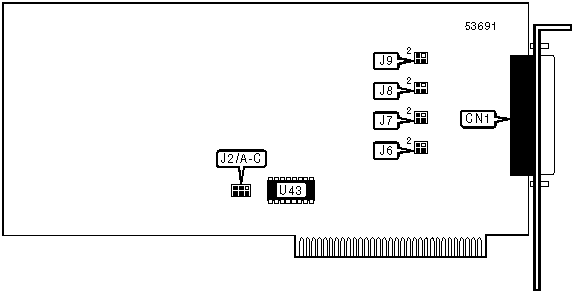

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|---------------------------------------+--------------------|
| Serial ports via DB-37 connector | CN1 |
|------------------------------------------------------------|
| Note:Standard DB-25 serial ports are provided on an |
| included adapter cable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | Factory configured - do not alter | J2/A | Open |
|---+------------------------------------+-------+-----------|
| | Serial port 4 uses external clock | J6 | Pins 1 & |
| | source | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 4 uses internal clock | J6 | Pins 3 & |
| | source | | 4 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 3 uses external clock | J7 | Pins 1 & |
| | source | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 3 uses internal clock | J7 | Pins 3 & |
| | source | | 4 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 2 uses external clock | J8 | Pins 1 & |
| | source | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 2 uses internal clock | J8 | Pins 3 & |
| | source | | 4 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 1 uses external clock | J9 | Pins 1 & |
| | source | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Serial port 1 uses internal clock | J9 | Pins 3 & |
| | source | | 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | Board Number | J2/B | J2/C | U43 |
|----------+--------------+---------+--------+---------------|
| 1240h | 4 | Open | Closed | XPCDB |
|----------+--------------+---------+--------+---------------|
| 1278h | 1 | Closed | Open | XPCDA or XPCD |
|----------+--------------+---------+--------+---------------|
| 1340h | 2 | Closed | Open | XPCDB |
|----------+--------------+---------+--------+---------------|
| 1378h | 3 | Open | Closed | XPCDA or XPCD |
+------------------------------------------------------------+
