# KOUWELL ELECTRONIC CORPORATION
KR-513A
Card Type Memory card
Chipset/Controller N/A
I/O Options N/A
Maximum DRAM 576KB

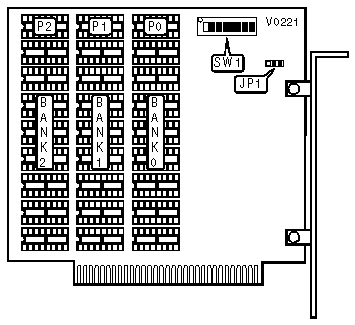

IMG IMG 1
+------------------------------------------------------------+
| MEMORY TYPE SELECTION |
|------------------------------------------------------------|
| Size | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 |
|----------+---------+---------+---------+---------+---------|
| 128KB | Off | On | Off | On | On |
|----------+---------+---------+---------+---------+---------|
| 256KB | On | Off | Off | Off | Off |
|----------+---------+---------+---------+---------+---------|
| 320KB | On | On | Off | On | Off |
|----------+---------+---------+---------+---------+---------|
| 384KB | On | On | Off | On | On |
|----------+---------+---------+---------+---------+---------|
| 512KB | On | Off | On | Off | Off |
|----------+---------+---------+---------+---------+---------|
| 576KB | On | Off | On | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| STARTING ADDRESS SELECTION |
|------------------------------------------------------------|
| Starting Address | SW1/6 | SW1/7 | SW1/8 |
|------------------+-------------+-------------+-------------|
| 64KB | On | On | Off |
|------------------+-------------+-------------+-------------|
| 128KB | On | Off | On |
|------------------+-------------+-------------+-------------|
| 192KB | On | Off | Off |
|------------------+-------------+-------------+-------------|
| 256KB | Off | On | On |
|------------------+-------------+-------------+-------------|
| 320KB | Off | On | Off |
|------------------+-------------+-------------+-------------|
| 384KB | Off | Off | On |
|------------------+-------------+-------------+-------------|
| 448KB | Off | Off | Off |
|------------------+-------------+-------------+-------------|
| 512KB | Off | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Position |
|-----------------------------+------------------------------|
| JP1 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Parity | Bank 1 | Parity | Bank | Parity |
| | | 0 | | 1 | 2 | 2 |
|-------+--------+--------+--------+--------+-------+--------|
| 128KB | (8) | (1) | (8) | (1) | None | None |
| | 4164 | 4164 | 4164 | 4164 | | |
|-------+--------+--------+--------+--------+-------+--------|
| 256KB | (8) | (1) | None | None | None | None |
| | 41256 | 41256 | | | | |
|-------+--------+--------+--------+--------+-------+--------|
| 320KB | (8) | (1) | (8) | (1) | None | None |
| | 41256 | 41256 | 4164 | 4164 | | |
|-------+--------+--------+--------+--------+-------+--------|
| 384KB | (8) | (1) | (8) | (1) | (8) | (1) |
| | 41256 | 41256 | 4164 | 4164 | 4164 | 4164 |
|-------+--------+--------+--------+--------+-------+--------|
| 512KB | (8) | (1) | (8) | (1) | None | None |
| | 41256 | 41256 | 41256 | 41256 | | |
|-------+--------+--------+--------+--------+-------+--------|
| 576KB | (8) | (1) | (8) | (1) | (8) | (1) |
| | 41256 | 41256 | 41256 | 41256 | 4164 | 4164 |
+------------------------------------------------------------+
