# LONGSHINE MICROSYSTEM, INC.
LCS-8684
Card Type I/O controller
Chipset/Controller Intel Corporation
I/O Options Serial ports (32)
Maximum DRAM 256KB
IMG IMG 1
+------------------------------------------------------------+

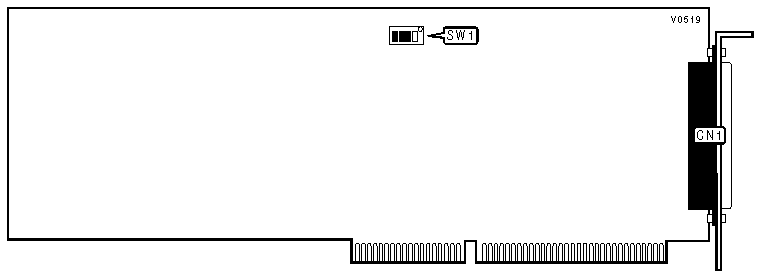

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|--------------------------------------+---------------------|
| DB-37 LCS-MTA module interface | CN1 |
|------------------------------------------------------------|
| Note: CN1 connects to proprietary multi-port modules |
| (LCS-MTA eight-port packs) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|------------------------------+-----------------------------|
| SW1/1 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O ADDRESS |
|------------------------------------------------------------|
| Address | SW1/2 | SW1/2 | SW1/3 |
|---------------+--------------+--------------+--------------|
| 156h - 157h | Off | Off | Off |
|---------------+--------------+--------------+--------------|
| 15Eh - 15Fh | Off | Off | On |
|---------------+--------------+--------------+--------------|
| 256h - 257h | Off | On | Off |
|---------------+--------------+--------------+--------------|
| 25Eh - 25Fh | Off | On | On |
|---------------+--------------+--------------+--------------|
| 356h - 357h | On | Off | Off |
|---------------+--------------+--------------+--------------|
| 35Eh - 35Fh | On | Off | On |
|---------------+--------------+--------------+--------------|
| 236h - 237h | On | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| The LCS-8684 supports up to four LCS-MTA eight-port packs |
| for a total of 32 serial ports. |
+------------------------------------------------------------+
