# IPC CORPORATION, LTD.
IPC DSP-16 PLUS/DSP-16 SCSI
Card Type Sound card
Chipset Unidentified
Controller
I/O Options CD audio in, CD-ROM interface (2), game/MIDI
port, line in, line out, microphone in,
PC-speaker, speaker out, wavetable synthesis ROM
Maximum DRAM N/A

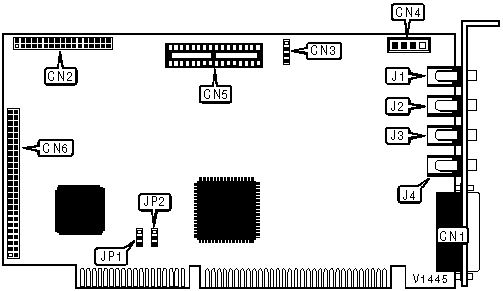

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| Game/MIDI port | CN1 | SCSI CD-ROM | CN6 |
| | | interface | |
|-----------------------+----------+--------------+----------|
| Sony CD-ROM interface | CN2 | Mic in | J1 |
|-----------------------+----------+--------------+----------|
| PC-speaker | CN3 | Line in | J2 |
|-----------------------+----------+--------------+----------|
| CD audio in | CN4 | Line out | J3 |
|-----------------------+----------+--------------+----------|
| Wavetable synthesis | CN5 | Speaker out | J4 |
| ROM socket | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCSI BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP1 |
|----------------------------+-------------------------------|
| » | 220h | Pins 1 & 2 closed |
|--------+-------------------+-------------------------------|
| | 240h | Pins 2 & 3 closed |
|------------------------------------------------------------|
| Note: Exact location of pin 1 is unidentified by the |
| manufacturer. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUDIO INTERFACE BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP2 |
|----------------------------+-------------------------------|
| » | 340h | Pins 1 & 2 closed |
|--------+-------------------+-------------------------------|
| | 140h | Pins 2 & 3 closed |
|------------------------------------------------------------|
| Note: Exact location of pin 1 is unidentified by the |
| manufacturer. |
+------------------------------------------------------------+
