# LASONIC ELECTRONICS CORPORATION
LSO-320
Card Type Sound card
Chip Set Lxycon
Maximum Onboard N/A
Memory
I/O Options CD-ROM audio (3), CD-ROM interface (4),
game/MIDI port, line in, microphone/line out,
microphone in, speaker out
Data Bus 16-bit ISA

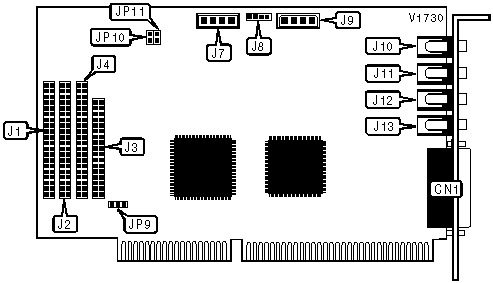

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Game/MIDI port | CN1 | Sony CD - audio in | J8 |
|----------------------+-------+---------------------+-------|
| Panasonic CD-ROM | J1 | Panasonic CD - | J9 |
| interface | | audio in | |
|----------------------+-------+---------------------+-------|
| IDE CD-ROM interface | J2 | Speaker out | J10 |
|----------------------+-------+---------------------+-------|
| Sony CD-ROM | J3 | Mic/line out | J11 |
| interface | | | |
|----------------------+-------+---------------------+-------|
| Mitsumi CD-ROM | J4 | Line in | J12 |
| interface | | | |
|----------------------+-------+---------------------+-------|
| Mitsumi CD - audio | J7 | Mic in | J13 |
| in | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|--------------------------------------+----------+----------|
| IDE, Panasonic or Sony CD-ROM | JP9/pins | Closed |
| interface in use | 1 & 2 | |
|--------------------------------------+----------+----------|
| Mitsumi CD-ROM interface in use | JP9/pins | Closed |
| | 2 & 3 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| OPL SELECT |
|------------------------------------------------------------|
| Setting | JP10 | JP11 |
|--------------------+-------------------+-------------------|
| OPL3 | Closed | Closed |
|--------------------+-------------------+-------------------|
| OPL4 | Open | Open |
+------------------------------------------------------------+
