# LABWAY CORPORATION
LABSOUND #800
Card Type Sound card
Chip Set ES1688
Maximum Onboard N/A
Memory
I/O Options CD-ROM audio (2), CD-ROM interface, game/MIDI
port, line in (2), line out (2), microphone in
(2), speaker out (2)
Data Bus 16-bit ISA
Floppy drives N/A
supported

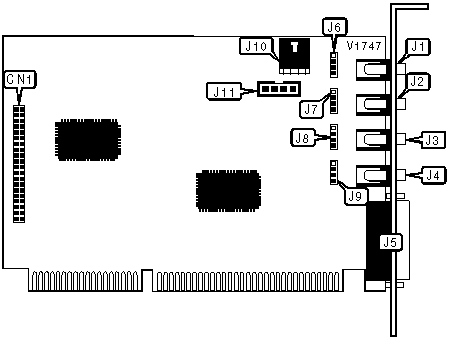

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| IDE CD-ROM interface | CN1 | Speaker out | J6 |
|----------------------+-------+---------------------+-------|
| Speaker out | J1 | Line out | J7 |
|----------------------+-------+---------------------+-------|
| Line out | J2 | Line in | J8 |
|----------------------+-------+---------------------+-------|
| Line in | J3 | Mic in | J9 |
|----------------------+-------+---------------------+-------|
| Mic in | J4 | ATAPI IDE CD - | J10 |
| | | audio in | |
|----------------------+-------+---------------------+-------|
| Game/MIDI port | J5 | IDE CD - audio in | J11 |
+------------------------------------------------------------+
