# IBM CORPORATION
16-BIT ADVANCED WAVETABLE SOUND CARD
Card Type Sound card
Chip Set Unidentified
Maximum Onboard N/A
Memory
I/O Options Audio out, CD-ROM audio, external in,
game/MIDI port, microphone in, PC speaker
Data Bus 16-bit ISA
Floppy drives N/A
supported

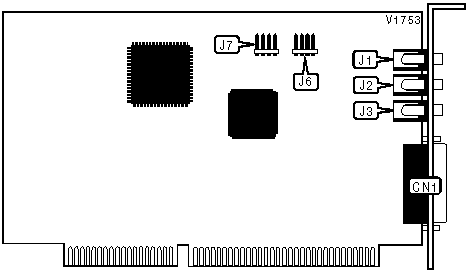

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Game/MIDI port | CN1 | External in | J3 |
|----------------------+-------+---------------------+-------|
| Audio out | J1 | CD - audio in | J6 |
|----------------------+-------+---------------------+-------|
| Mic in | J2 | PC speaker | J7 |
+------------------------------------------------------------+
