# KYE INTERNATIONAL CORPORATION
SOUND MAKER 16PNP
Card Type Sound card
Chip Set Unidentified
Maximum Onboard N/A
Memory
I/O Options CD-ROM audio (2), CD-ROM interface, game/MIDI
port, line in (2), line out (2), microphone
(2), speaker/headphone (2), 3D connector,
wavetable
Data Bus 16-bit ISA
Floppy drives N/A
supported
IMG IMG 1
+------------------------------------------------------------+

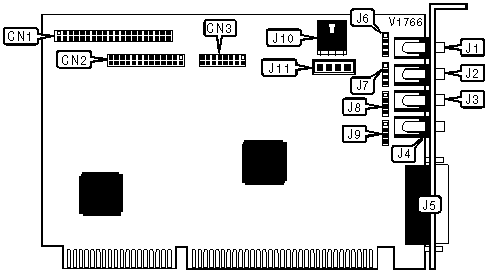

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| IDE CD-ROM interface | CN1 | Game/MIDI port | J5 |
|-----------------------+-------+--------------------+-------|
| Wavetable | CN2 | Speaker/headphone | J6 |
|-----------------------+-------+--------------------+-------|
| 3D connector | CN3 | Line out | J7 |
|-----------------------+-------+--------------------+-------|
| Speaker/headphone | J1 | Line in | J8 |
|-----------------------+-------+--------------------+-------|
| Line out | J2 | Mic in | J9 |
|-----------------------+-------+--------------------+-------|
| Line in | J3 | IDE CD - audio in | J10 |
|-----------------------+-------+--------------------+-------|
| Mic in | J4 | CD - audio in | J11 |
+------------------------------------------------------------+
