# LASONIC
LVC-110AV
Card Type Video capture card
Chip Set None
Highest Resolution 1024 x 768 (NTSC)
Supported
Maximum Onboard None
Memory
I/O Options Audio in, audio out, CD-ROM audio, TV
tuner, VGA feature connector, video in, VGA
in, VGA out
Data Bus 16-bit ISA
Floppy drives None
supported
Video Types XVGA
Supported
IMG IMG 1
+------------------------------------------------------------+

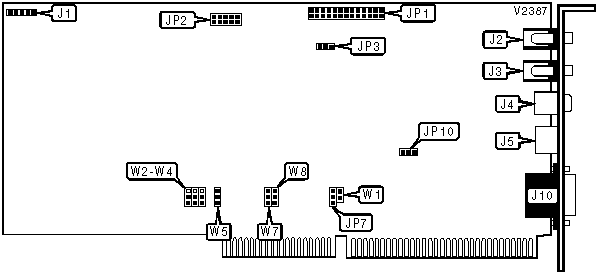

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| CD-ROM - audio in | J1 | VGA in | J5 |
|--------------------+-------+-----------------------+-------|
| Audio out | J2 | VGA out | J10 |
|--------------------+-------+-----------------------+-------|
| Audio in | J3 | VGA feature connector | JP1 |
|--------------------+-------+-----------------------+-------|
| Video in | J4 | TV tuner | JP2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | Skew set at normal | JP3 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Skew set at Hi-color | JP3 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| » | Video IRQ15 select | JP7 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Video IRQ12 select | JP7 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Video address | W1 | Unidentified |
|---+------------------------------+-------+-----------------|
| » | Audio IRQ11 select | W4 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Audio IRQ10 select | W4 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| » | Audio address is 534h - 537h | W5 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Audio address is 608h - 60Bh | W5 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUDIO DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | W2 | W3 |
|------------------+--------------------+--------------------|
| | 0 | Pins 1 & 2 closed | Pins 1 & 2 closed |
|----+-------------+--------------------+--------------------|
| » | 1 | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MODE SELECTION |
|------------------------------------------------------------|
| Setting | W7 | W8 |
|------------------+--------------------+--------------------|
| » | Linear | Pins 1 & 2 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Page | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: The exact function & purpose of JP10 is |
| unidentified. |
+------------------------------------------------------------+
