       # J & J TECHNOLOGY, INC.

          JJ.612, JJ.612-1

          Card Type   PCMCIA interface
          Chip Set    Unidentified
          I/O Options PCMCIA Type II slot (JJ.612-1)

                      PCMCIA Type III slot or PCMCIA Type II slots (2)
                      (JJ.612)
          Data Bus    8-bit ISA

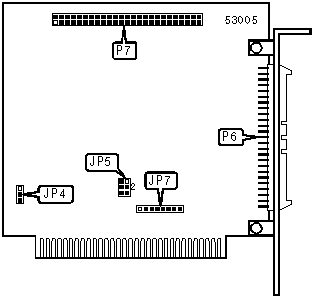

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function        | Label |      Function      | Label |
          |-----------------------+-------+--------------------+-------|
          | PCMCIA interface via  |  P6   | PCMCIA interface   |  P7   |
          | proprietary connector |       | via 50-pin header  |       |
          |------------------------------------------------------------|
          |      Note:A standard PCMCIA slot is provided on an         |
          |      external adapter box.                                 |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Setting                 | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP4  | Pins 1 &  |
          |   |                                    |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP5  | Pins 1 &  |
          |   |                                    |       | 2, 4 & 5  |
          |   |                                    |       |  closed   |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP7  | Pins 1 &  |
          |   |                                    |       | 2, 5 & 6  |
          |   |                                    |       |  closed   |
          |------------------------------------------------------------|
          |      Note:JP1 is located under the faceplate of the        |
          |      external PCMCIA drive box.                            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          | Note: Three jumpers JP1, JP2 and JP3 are located on the    |
          | drive unit under the drive unit cover. JP1 sets the base   |
          | I/O address: 3E0h = open (default) or 1E0h = closed. JP2   |
          | and JP3 are factory configured and should not be altered:  |
          | JP3 = open and JP2/pins 1 & 2 (pins nearest JP3) = closed. |
          +------------------------------------------------------------+
