# LABWAY CORPORATION
ES1868 PnP, ES1868 PnP 3D
Card Type Sound card
Chip Set ES1868
Maximum Onboard None
Memory
I/O Options CD-ROM audio (2), CD-ROM interface, game/MIDI
port, line in, line out, microphone in,
speaker out, wavetable, 3D sound (3D only)
Data Bus 16-bit ISA

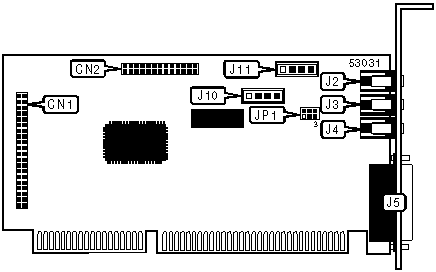

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| IDE CD-ROM interface | CN1 | Microphone jack | J4 |
|-----------------------+-------+--------------------+-------|
| Wavetable connector | CN2 | Game/MIDI port | J5 |
|-----------------------+-------+--------------------+-------|
| Speaker/line out | J2 | Audio in - CD-ROM | J10 |
|-----------------------+-------+--------------------+-------|
| Line in | J3 | Audio in - CD-ROM | J11 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------+-------+--------------------------|
| ยป | Speaker out | JP1 | Pins 2 & 3, 5 & 6 closed |
|---+---------------------+-------+--------------------------|
| | Line out | JP1 | Pins 1 & 2, 4 & 5 closed |
+------------------------------------------------------------+
