# IRWIN
SC402
Card Type Tape drive controller
Hard Drives supported None
Floppy drives supported None
Data Bus 8-bit ISA
Card Size Half-length, full-height

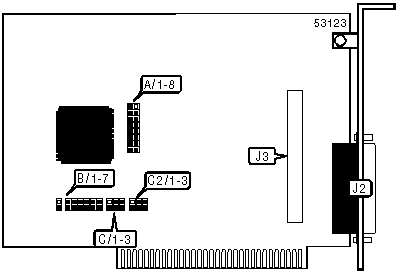

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------------+-------+--------------+-------|
| Tape drive interface - | J2 | Tape drive | J3 |
| external | | interface - | |
| | | internal | |
|------------------------------------------------------------|
| Note:Exact number of pins for both interfaces is |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+--------+----------|
| » | Factory configured - do not alter | A/8 | Closed |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | B/1 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | C/1 | C/2 | C/3 | C2/1 | C2/2 | C2/3 |
|---------+--------+--------+--------+-------+-------+-------|
|» | 1 | Closed | Open | Open |Closed | Open | Open |
|---+-----+--------+--------+--------+-------+-------+-------|
| | 2 | Open | Closed | Open | Open |Closed | Open |
|---+-----+--------+--------+--------+-------+-------+-------|
| | 3 | Open | Open | Closed | Open | Open |Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
|Address | A/1 | A/2 | A/3 | A/4 | A/5 | A/6 | A/7 |
|--------+-------+-------+-------+------+------+------+------|
| |100h |Closed |Closed |Closed |Closed|Closed| Open |Closed|
|--+-----+-------+-------+-------+------+------+------+------|
|» |200h |Closed |Closed |Closed |Closed|Closed|Closed| Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |220h |Closed |Closed | Open |Closed|Closed|Closed| Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |280h |Closed |Closed |Closed |Closed| Open |Closed| Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |300h |Closed |Closed |Closed |Closed|Closed| Open | Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |338h | Open | Open | Open |Closed|Closed| Open | Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |350h |Closed | Open |Closed | Open |Closed| Open | Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |360h |Closed |Closed | Open | Open |Closed| Open | Open |
|--+-----+-------+-------+-------+------+------+------+------|
| |370h |Closed | Open | Open | Open |Closed| Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| Setting | B/2 | B/3 | B/4 | B/5 | B/6 | B/7 |
|---------+--------+--------+--------+-------+-------+-------|
| | IRQ2 | Closed | Open | Open | Open | Open | Open |
|--+------+--------+--------+--------+-------+-------+-------|
|» | IRQ3 | Open | Closed | Open | Open | Open | Open |
|--+------+--------+--------+--------+-------+-------+-------|
| | IRQ4 | Open | Open | Closed | Open | Open | Open |
|--+------+--------+--------+--------+-------+-------+-------|
| | IRQ5 | Open | Open | Open |Closed | Open | Open |
|--+------+--------+--------+--------+-------+-------+-------|
| | IRQ6 | Open | Open | Open | Open |Closed | Open |
|--+------+--------+--------+--------+-------+-------+-------|
| | IRQ7 | Open | Open | Open | Open | Open |Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| The SC402 is used with FT150 tape drive. The tape drive |
| cannot be used in EISA systems , 486 or 386 faster than |
| 25MHz. |
+------------------------------------------------------------+
