# I/OMAGIC CORPORATION
INTERWAVE-32
Card Type Sound card
Chip Set Unidentified
I/O Options CD-ROM interface, game/MIDI port, line in (2),
microphone in, line out, audio in - CD-ROM (3)
Data Bus 16-bit ISA
Card Size Three-quarter length, Full-height card

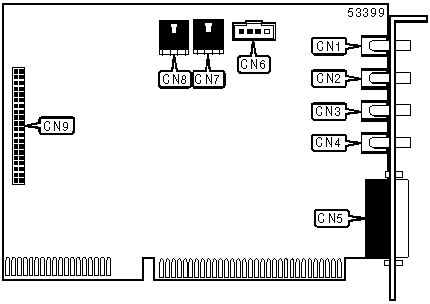

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Auxiliary line in | CN1 | Audio in - CD-ROM | CN6 |
| | | (Panasonic) | |
|-------------------+-------+------------------------+-------|
| Line in | CN2 | Audio in - CD-ROM | CN7 |
| | | (IDE) | |
|-------------------+-------+------------------------+-------|
| Microphone in | CN3 | Audio in - CD-ROM | CN8 |
| | | (IDE) | |
|-------------------+-------+------------------------+-------|
| Line out | CN4 | CD-ROM interface - IDE | CN9 |
|-------------------+-------+------------------------+-------|
| Game/MIDI port | CN5 | | |
+------------------------------------------------------------+
