# I/OMAGIC CORPORATION
MAGICSOUND-16
Card Type Sound card
Chip Set Unidentified
I/O Options CD-ROM interface, line in (2), microphone jack,
speaker/line out, game/MIDI port, audio in -
CD-ROM (2), wavetable connector
Data Bus 16-bit ISA
Card Size Half-length, full-height card

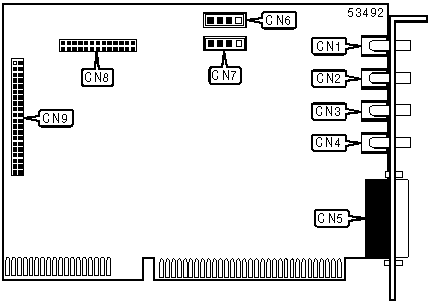

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Auxiliary Line in | CN1 | CD-Audio in | CN6 |
|-------------------+-------+------------------------+-------|
| Line in | CN2 | CD-Audio in | CN7 |
|-------------------+-------+------------------------+-------|
| Microphone jack | CN3 | Wavetable connector | CN8 |
|-------------------+-------+------------------------+-------|
| Speaker/Line out | CN4 | CD-ROM interface - IDE | CN9 |
|-------------------+-------+------------------------+-------|
| Game/MIDI port | CN5 | | |
+------------------------------------------------------------+
