# JAMECO ELECTRONIC COMPONENTS
JE1068
Card Type Multi-I/O card
Chip Set Winbond
Maximum Onboard None
Memory
I/O Options game port, parallel port, serial ports (2
Data Bus 8-bit ISA
Card Size Half-length, full-height
IMG IMG 1
+------------------------------------------------------------+

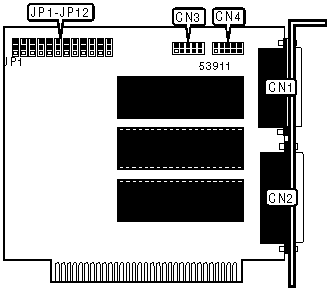

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Game port | CN1 | Serial port 1 | CN3 |
|------------------------+-------+-------------------+-------|
| 25-pin parallel port | CN2 | Serial port 2 | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Serial port 1 enabled | JP2 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Serial port 1 disabled | JP2 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Serial port 2 enabled | JP4 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Serial port 2 disabled | JP4 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Parallel port enabled | JP6 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Parallel port disabled | JP6 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Game port enabled | JP7 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Game port disabled | JP7 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP11 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | JP12 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP5 |
|-----------------------------+------------------------------|
| » | LPT1 (378h) | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | LPT2 (278h) | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP1 |
|-----------------------------+------------------------------|
| » | COM1 (3F8h) | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | COM3 (3E8h) | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 ADDRESS SELECTION |
|------------------------------------------------------------|
| Setting | JP3 |
|-----------------------------+------------------------------|
| » | COM2 (2F8h) | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | COM4 (2E8h) | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP8 |
|----------------------------+-------------------------------|
| » | IRQ4 | Pins 1 & 2 closed |
|-----+----------------------+-------------------------------|
| | IRQ3 | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP9 |
|----------------------------+-------------------------------|
| » | IRQ3 | Pins 1 & 2 closed |
|-----+----------------------+-------------------------------|
| | IRQ4 | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | JP10 |
|----------------------------+-------------------------------|
| » | IRQ7 | Pins 1 & 2 closed |
|-----+----------------------+-------------------------------|
| | IRQ5 | Pins 2 & 3 closed |
+------------------------------------------------------------+
