# J-BOND COMPUTER SYSTEMS CORPORATION
PROACTIVE 3D SOUND EFFECTS CARD
Card Type Sound card
Chip Set Yamaha
Maximum Onboard Unidentified
Memory
I/O Options Audio in - CD-ROM (3), Microphone in, line in,
line out, speaker out, game/MIDI port
Data Bus 16-bit ISA
IMG IMG 1
+------------------------------------------------------------+

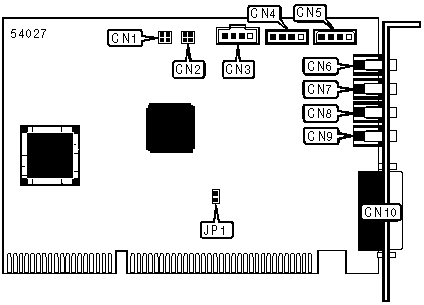

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Auxillary 2 | CN1 | Microphone in | CN6 |
|---------------------------+-------+----------------+-------|
| Mono in | CN2 | Line in | CN7 |
|---------------------------+-------+----------------+-------|
| Audio in - CD-ROM (Sony) | CN3 | Line out | CN8 |
|---------------------------+-------+----------------+-------|
| Audio in - CD-ROM | CN4 | Speaker out | CN9 |
| (Mitsumi) | | | |
|---------------------------+-------+----------------+-------|
| Audio in - CD-ROM | CN5 | Game/MIDI port | CN10 |
| (Panasonic) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| YMF704 FM and wavetable synthesizer | JP1 | Open |
| chip not installed | | |
|-----------------------------------------+-------+----------|
| YMF704 FM and wavetable synthesizer | JP1 | Open |
| chip installed, MIDI hardware disabled | | |
|-----------------------------------------+-------+----------|
| YMF704 FM and wavetable synthesizer | JP1 | Closed |
| chip installed, MIDI hardware enabled | | |
+------------------------------------------------------------+
