# IQ SYSTEMS, INC.
IQS80X
Card Type Speech messaging card
Chip Set Unidentified
Maximum Onboard 4MB EPROM or EEPROM/FLASH
Memory
I/O Options Power jack, speaker jack, RJ-11 host system
connector
Hard Drives None
supported
Floppy drives None
supported
Data Bus External

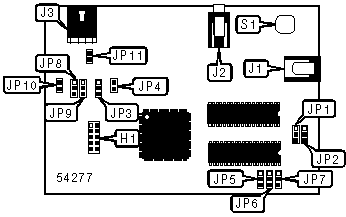

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 10-pin host system | H1 | RJ-11 host system | J3 |
| connector | | connector | |
|------------------------+-------+-------------------+-------|
| Power jack | J1 | Reset button | S1 |
|------------------------+-------+-------------------+-------|
| Speaker jack | J2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| Reset signal through J3 enabled | JP11 | Closed |
|----------------------------------------+-------+-----------|
| Reset signal through J3 disabled | JP11 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MEMORY JUMPER CONFIGURATION |
|------------------------------------------------------------|
| MEM-A | MEM-B | JP1 | JP2 | JP5 | JP6 | JP7 |
|---------------+--------------+-----+-----+-----+-----+-----|
| 512KB x 8 | 512KB x 8 | 1 & | 1 & | 1 & | 1 & | 1 & |
| EPROM | EPROM | 2 | 2 | 2 | 2 | 2 |
|---------------+--------------+-----+-----+-----+-----+-----|
| 512KB x 8 | 512KB x 8 | 2 & | 2 & | 1 & | 1 & | 1 & |
| EEPROM/FLASH | EEPROM/FLASH | 3 | 3 | 2 | 2 | 2 |
|---------------+--------------+-----+-----+-----+-----+-----|
| 512KB x 8 | 32KB x 8 | 1 & | 1 & | 2 & | 2 & | 2 & |
| EPROM | SRAM/EEPROM | 2 | 2 | 3 | 3 | 3 |
|---------------+--------------+-----+-----+-----+-----+-----|
| 512KB x 8 | 32KB x 8 | 2 & | 2 & | 2 & | 2 & | 2 & |
| EEPROM/FLASH | SRAM/EEPROM | 3 | 3 | 3 | 3 | 3 |
|------------------------------------------------------------|
| Note: Pins designated are in the closed position. Supports |
| two 4MB(512KB x 8)EPROM or EEPROM flash memories or one |
| 4MB ROM and one 256KB(32KB x 8)SRAM or EEPROM. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL COMMUNICATIONS SELECTION |
|------------------------------------------------------------|
| Communications | Connector | JP3 | JP8 | JP9 | JP10 |
|-----------------+-----------+-------+------+------+--------|
| UART - | J3 or H1 | Pins | Pins | Pins | Open |
| TTL/ObjectLink | | 1 & 2 | 1 & | 1 & | |
| | | | 2 | 2 | |
|-----------------+-----------+-------+------+------+--------|
| UART - RS-232 | J3 | Pins | Pins | Pins | Closed |
| | | 1 & 2 | 2 & | 2 & | |
| | | | 3 | 3 | |
|-----------------+-----------+-------+------+------+--------|
| RS-485 - TTL | H1 | Pins | Pins | Pins | Open |
| | | 2 & 3 | 1 & | 1 & | |
| | | | 2 | 2 | |
|------------------------------------------------------------|
| Note: Pins designated are in the closed position. |
+------------------------------------------------------------+
