# KADATCO CO,. LTD.
ART-617, ART-617-3D
Card Type Sound Card
Chip Set S3
Maximum Onboard Unidentified
Memory
I/O Options Game/MIDI Port, line in, audio in CD-ROM (2),
aux in, microphone in, Speaker/line out
Data Bus 32-bit PCI
Card Size Half-length, half-height

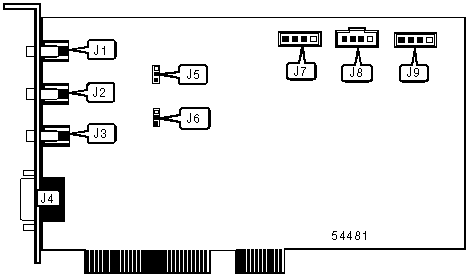

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Line in | J1 | Aux in | J7 |
|----------------------+-------+---------------------+-------|
| Microphone in | J2 | Audio in CD-ROM | J8 |
|----------------------+-------+---------------------+-------|
| Speaker/line-out | J3 | Audio in CD-ROM | J9 |
|----------------------+-------+---------------------+-------|
| Game/MIDI Port | J4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | J5 | J6 |
|------------------+--------------------+--------------------|
| Speaker out | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| Line out | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
