# INDUSTRIAL COMPUTER SOURCE
16ISO
Card Type Parallel card
Chip Set Unidentified
I/O Options Parallel ports (2)
Data Bus 8-bit ISA

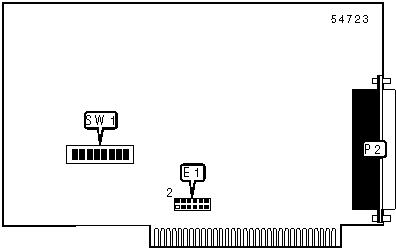

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|--------------------------------------+---------------------|
| 2 parallel ports via DB-37 connector | P2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADDRESS SELECTION |
|------------------------------------------------------------|
|Address|SW1/1 |SW1/2 |SW1/3 |SW1/4 |SW1/5 |SW1/6|SW1/7|SW1/8|
|-------+------+------+------+------+------+-----+-----+-----|
| 280 | Off | On | Off | On | On | On | On | On |
|-------+------+------+------+------+------+-----+-----+-----|
| 300 | Off | Off | On | On | On | On | On | On |
|-------+------+------+------+------+------+-----+-----+-----|
| 304 | Off | Off | On | On | On | On | On | Off |
|-------+------+------+------+------+------+-----+-----+-----|
| 3A0 | Off | Off | Off | On | Off | On | On | On |
|-------+------+------+------+------+------+-----+-----+-----|
| 3A4 | Off | Off | Off | On | Off | On | On | Off |
|-------+------+------+------+------+------+-----+-----+-----|
| 320 | Off | Off | On | On | Off | On | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | E1 |
|----------------------------+-------------------------------|
| 2 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 3 | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 4 | Pins 5 & 6 closed |
|----------------------------+-------------------------------|
| 5 | Pins 7 & 8 closed |
|----------------------------+-------------------------------|
| 6 | Pins 9 & 10 closed |
|----------------------------+-------------------------------|
| 7 | Pins 11 & 12 closed |
+------------------------------------------------------------+
